ICU Bed
ICU Bed — 5 Function Electric
Critical-care positioning at the touch of a button
A fully electric intensive-care bed offering synchronised backrest, knee-rest, height and Trendelenburg/reverse-Trendelenburg positioning, built for round-the-clock ICU use with rapid CPR release and integrated monitor/IV mounts.
Key Features
- 5-function electric actuation with hand-held controller
- Emergency CPR quick-release lever
- Trendelenburg & reverse-Trendelenburg tilt
- Central locking castors, 125 mm dia.
- X-ray compatible radiolucent backrest panel
- Side rails with foldable ABS panels
Technical Data
Specifications
| Frame | Heavy-gauge MS, epoxy powder coated |
|---|---|
| Deck | 4-section, high-pressure laminate |
| Adjustment | Electric linear actuators (24V) |
| Load Capacity | 185 kg (SWL) |
| Castors | 125 mm, central braking |
| Height Range | 400 – 700 mm |
Specifications indicative — configurations can be customised to your facility's requirements. Contact us for a detailed technical datasheet.
Medical Beds
More From This Range
Fowler Bed

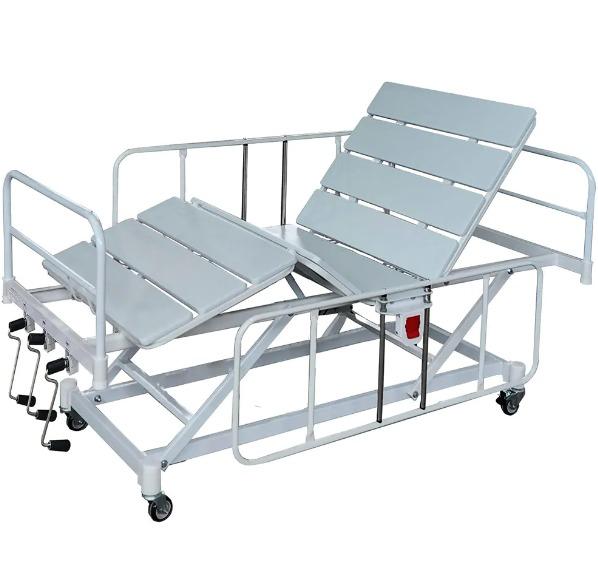

Fowler Bed — Hydraulic 3 Function
Manual & hydraulic general-ward positioning beds
View DetailsSemi-Fowler Bed

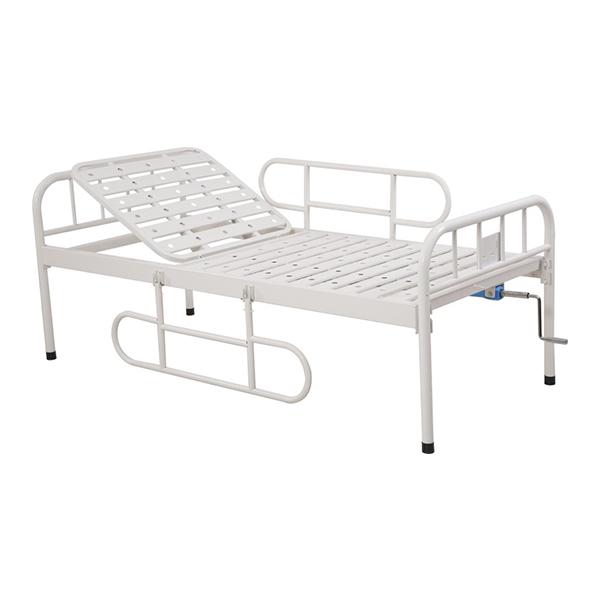

Semi-Fowler Bed — Manual
Economical two-function ward beds
View DetailsPlain / Paediatric Bed

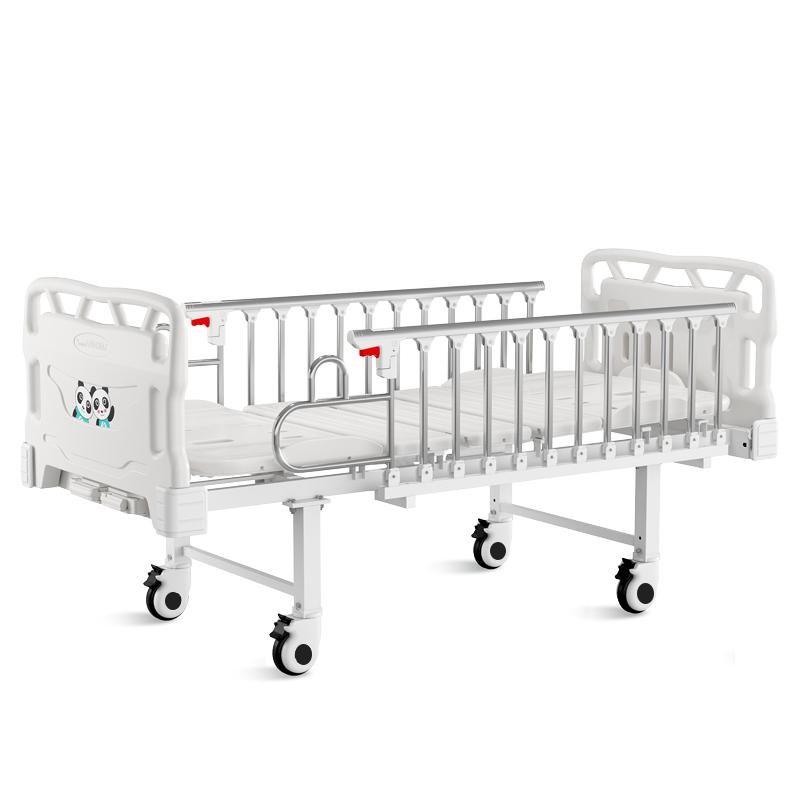

Paediatric Bed with Collapsible Railings
